Frequently Asked Questions (FAQ)
Q: Can hydrophilic swellable waterstops be exposed to rain during construction?
A: If a standard hydrophilic waterstop is exposed to premature rain before concrete is poured, it can swell early and disrupt the joint. Specifying delayed-action hydrophilic rubber waterstops prevents premature expansion during rain or site washing.
Q: Why are EPDM waterstops preferred over standard PVC waterstops for large concrete structures?
A: EPDM rubber offers much higher elasticity, superior thermal stability, and better recovery after cyclic joint movement compared to rigid or plasticized PVC, which can become brittle over time.
Q: What hydrostatic pressure can rubber waterstops withstand?
A: High-performance vulcanized rubber waterstop systems, when properly embedded, can withstand hydrostatic water heads exceeding 5 bar to 10 bar (50–100 meters of water pressure).
Securing Substructures: Advanced Vulcanized & Hydrophilic Waterstops for High-Water-Table Construction in the GCC
Constructing deep basements, underground rail stations, and water desalination facilities in coastal Middle Eastern cities (like Dubai, Doha, Abu Dhabi, and Jeddah) poses a significant challenge: aggressive saline groundwater. Coastal soils contain high concentrations of chlorides and sulfates, which degrade unsealed concrete expansion and construction joints.

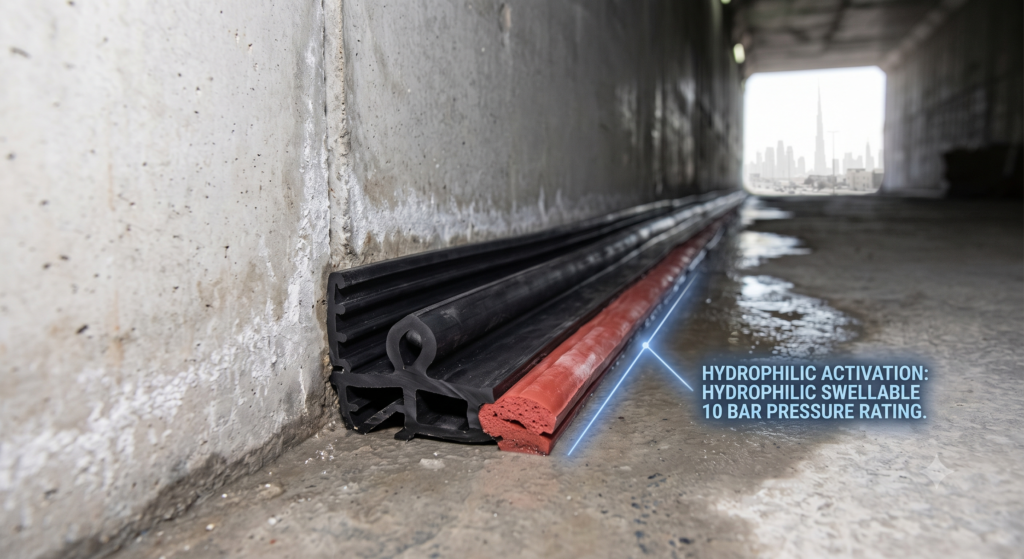

To prevent structural water ingress and chemical deterioration, engineers rely on a dual-line defense: Vulcanized EPDM/Neoprene Waterstops combined with Hydrophilic Swellable Rubber Strips.
Active vs. Passive Rubber Waterstops
- Passive Defense (Vulcanized EPDM & Neoprene Profiles): Embedded directly within concrete joints during pouring, these heavy-duty ribbed rubber extrusions create a physical barrier. Their high tensile strength and elongation allow them to handle structural settlement and expansion without tearing.
- Active Defense (Hydrophilic Swellable Rubber): Applied to construction joints, hydrophilic strips combine synthetic rubber with water-absorbent polymers. When exposed to water, the strip swells dynamically (expanding up to 300% to 500% in volume), forming a tight compression seal against concrete faces.
Overcoming Saline Groundwater Challenges
In coastal Middle Eastern groundwater, standard bentonite-based waterstops can lose their swelling capacity due to high salt concentrations. Chemical-Grade Hydrophilic Rubber Strips are specifically formulated with salt-tolerant polymers that retain expansion efficiency even when exposed to brackish or marine saline water.
Key Application Areas Across Middle East Construction
- High-Rise Basements: Multi-level subterranean parking structures facing high hydrostatic head pressure.
- Desalination & Water Reservoirs: Prevents potable water leakage while withstanding chemical treatments.
- Utility Tunnels & Metro Systems: Keeps underground transit systems dry and structural concrete free from chloride-induced rebar corrosion.
